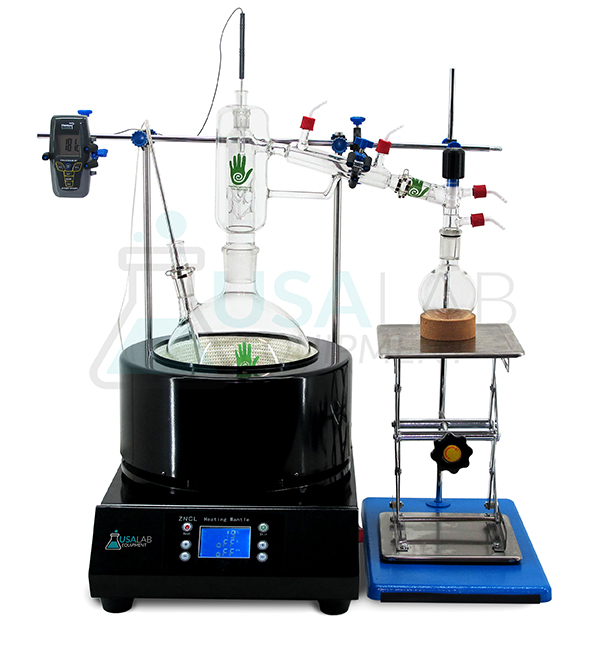

USA Lab Premium 5000mL / 5L Short Path Distillation Kit - USA Made Glass

USA Lab Premium 5000mL / 5L Short Path Distillation Kit - USA Made Glass

No reviews yet Write a Review
$4,499.00
SKU:
APSPD5L
UPC:
Does not apply
Condition:
New
Shipping:
Calculated at Checkout
Model:
APSPD5L
Modified Item:
No
Custom Bundle:
No
MPN:
APSPD5L
Brand:
USA Lab Equipment
Non-Domestic Product:
No

*** 4 week lead time ***

Our Premium 5L Short Path Distillation Kit is made with high quality USA Made Glass and a specially designed head to allow for excellent distillation at a great value. This kit is designed for high production and consistent results

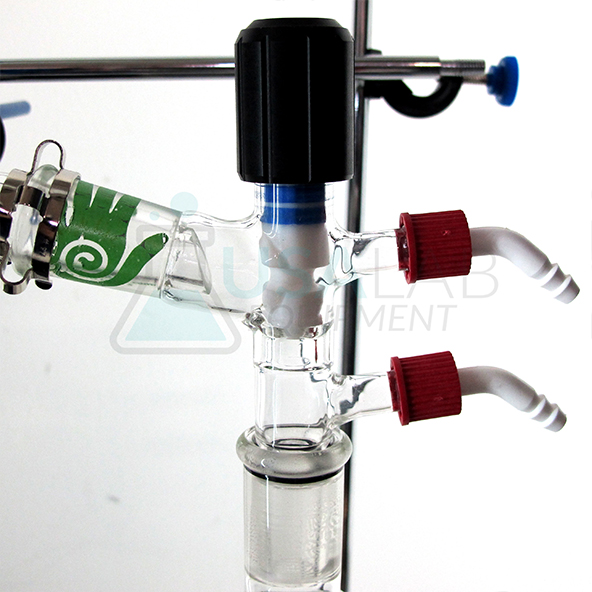

This distillation kit comes with a wide 45/50 joint head allowing for faster flow, a 14/20 molecular magnet thermowell, and a 24/40 vacuum take-off adapter to allow for easy switching of receiving flasks.


ZNCL-TS-5000 SPECIFICATIONS

Capacity: 5L / 5000mL

Power Requirements: 110V - 15A - 60Hz

Speed Range: 100-2500 r/min

Motor Power: 40W, DC14-24V

Temperature Range: 0-380°C

Heating Power: 180-2200W

Temperature Accuracy: ±1°C

Insulation Max Temp Resistance: 450°C

•Temperature Control Type: Intelligent

•Dimensions: 17" x 12" x 10"

•Weight: 11lbs







APSPD5L PACKING LIST

1x: 5L 110V 380°C ZNCL-TS-5000 Stirrer Heating Mantle

1x: USA Made - 5L Fractional Distillation Head - 45/50 bottom - 14/20 top

1x: USA Made - 5L 2 Neck Boiling Flask - 45/50 & 24/40

1x: USA Made - Vacuum Take-Off Adapter - 24/40 - 2x GL-16 Connections

1x: USA Made -250mL 1 Neck Round Bottom Flask - 24/40

1x: USA Made - 14/20 Molecular Magnet Thermowell

1x: USA Made - 24/40 Thermowell

4x: USA Made - GL-16 Connection

2x: 24/40 Stainless Steel Keck Clamp

1x: Cork Stand

1x: 8"x8" Jack Stand

2x: 16"x10"x27" Lab Stand

5x: Boss Head Clamp

2x: 3-Finger Adjustable Clamp 0-70mm

1x: Digital Thermometer

2x: Heating Mantle Stainless Steel Threaded Pole

1x: 27" Stainless Steel Threaded Pole

1x: Stir Magnet

1x: Vacuum Grease


This comes with no chiller or vacuum pump. This is not a turnkey kit, just the glassware, mantle and stands! Thank you for understanding!

We ship all glassware products with additional care, but sometimes they arrive broken. If glassware arrives broken, please contact us within 3 days of receiving your product and we will either send you a brand new piece or send you a refund! Any glassware broken after delivery voids all warranties. Thank you for understanding!





For Technical Support, Questions, or Other Issues Please Email or Call Us!





USA Lab Equipment











1 Year Parts & Labor
